How to Use Webcalldirect with your SIP device
You need a Webcalldirect username and password in order to call via our network. So first sign up with Webcalldirect by downloading and installing the application and create your login.
You can use Webcalldirect with the following types of Sip devices:
 |
SIP ATA (Analogue Telephone Adapter)
|
|
SIP Router
|
|
xDSL Modem
|
The most devices are equipped with a combination of the following ports.

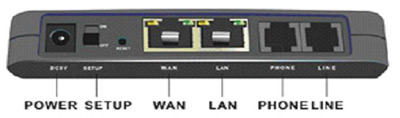

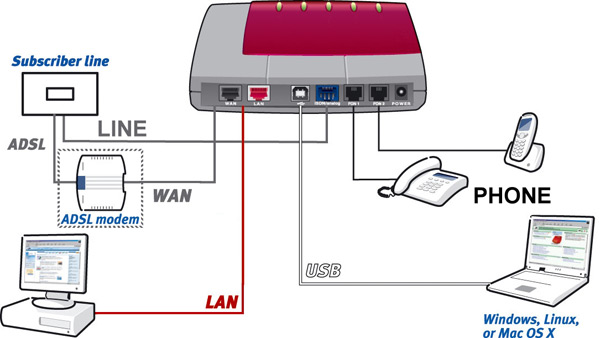

Example 1
(this is merely an example layout, every type of device can be different)
Example 2
(this is merely an example layout, every type of device can be different)
|
(A)DSL: connect your line from your (A)DSL provider (not available on a ATA)
|
|
WAN: connect your line from your xDSL modem/router
|
|
LAN: port for your (home) network, you can connect e.g. your PC, lap-top, network-printer or wireless router
|
|
PHONE: here you can connect your analogue telephone |
|
LINE: connect your analogue (PSTN) telephone line |
|
USB: you can connect PC or lap-top with a free USB port |
Some SIP devices have more than one LAN port and/or PHONE port available.
For the hardware connections from your SIP device look at the above information and your user manual.
After connecting the hardware you have to make sure that your software is installed and configured the right way.
Software configuration
Below are some examples of the software configuration of various popular SIP devices. Please also consult the manual that came with your SIP device

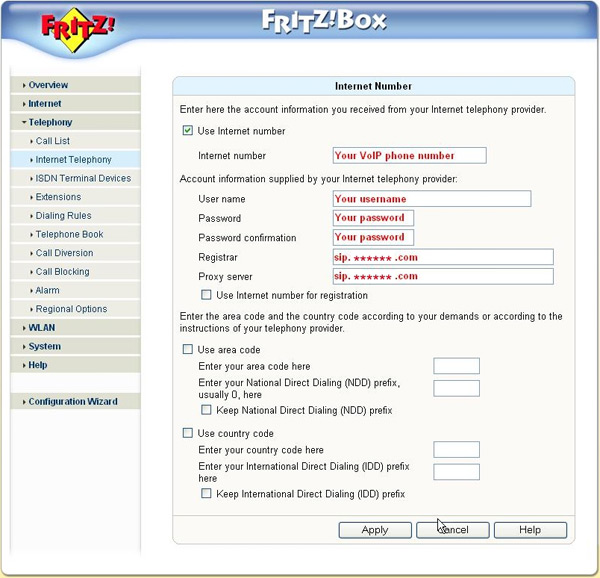

 AVM Fritz!box FON 7050
|
(click here to expand) |
|
Fill in the following settings:
| |
 |
Internet number: your VOIP phone number (if available) |
|
User Name: fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Password: fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Password confirmation: fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Registrar: this is sip.Webcalldirect.com |
|
Proxy server: this is sip.Webcalldirect.com |
|

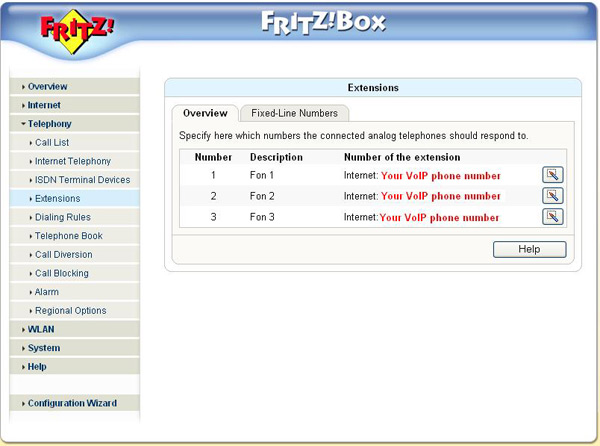

Overview - number 1, 2 or 3: your VOIP phone number (if available) |
|
|

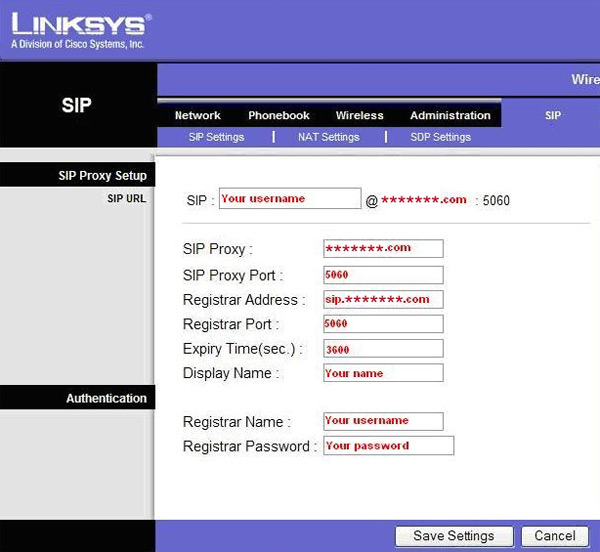

LINKSYS WIP330
|
(click here to expand) |
|
Fill in the following settings:
| |
|
SIP Proxy: fill in Webcalldirect.com |
|
SIP Proxy Port: this is port number 5060 |
|
Registrar Address: this is sip.Webcalldirect.com |
|
Registrar Port: this is port number 5060 |
|
Expiry Time(sec): this is 3600 seconds |
|
Display name: you can fill-in e.g. your name or telephone number, this name will be displayed in the phone screen of the person you are calling |
|
Registrar Name: fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Registrar Password: fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
|

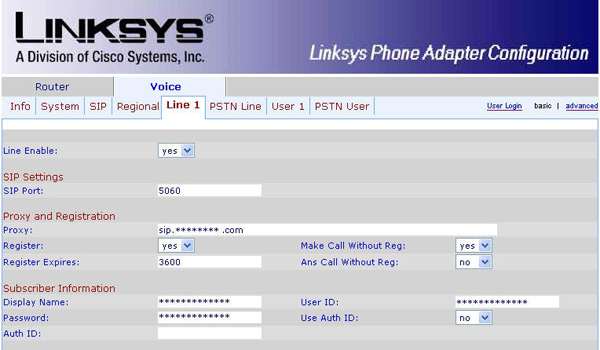

LINKSYS SPA3102
|
(click here to expand) |
|
Fill in the following settings:
| |
|
Line Enable: Yes |
|
SIP Port : portnumber 5060 |
|
Proxy: fill in sip.Webcalldirect.com |
|
Register: this is 'Yes' |
|
Make Call Without Reg: fill in 'Yes' |
|
Register Expires: this is 3600 seconds |
|
Ans Call Without Reg: fill in 'No' |
|
Display name: you can fill-in e.g. your name or telephonenumber, this name will be displayed in the phone screen of the person you are calling |
|
User ID: fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Password: fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Use Auth ID: set to 'No' |
|
|

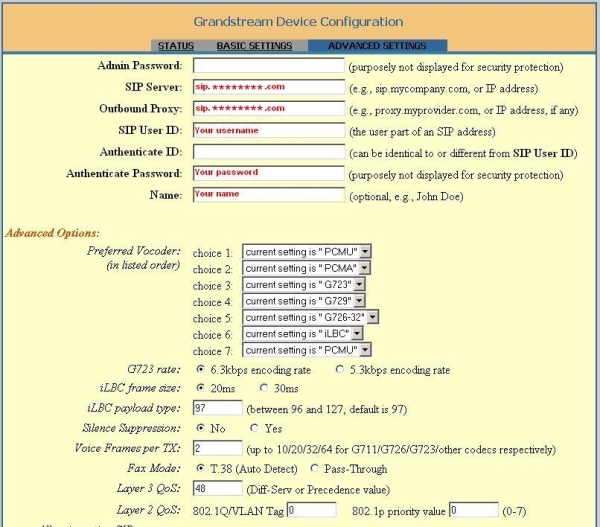

GRANDSTREAM HT286
|
(click here to expand) |
|
Fill in the following settings:
| |
|
SIP server : fill in sip.Webcalldirect.com |
|
Outbound proxy : this is sip.Webcalldirect.com |
|
SIP User ID : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Authenticate Password : fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Name : you can fill-in e.g. your name or telephonenumber, this name will be displayed in the phone screen of the person you are calling |
|
Don't change the Advanced Options |
|
|

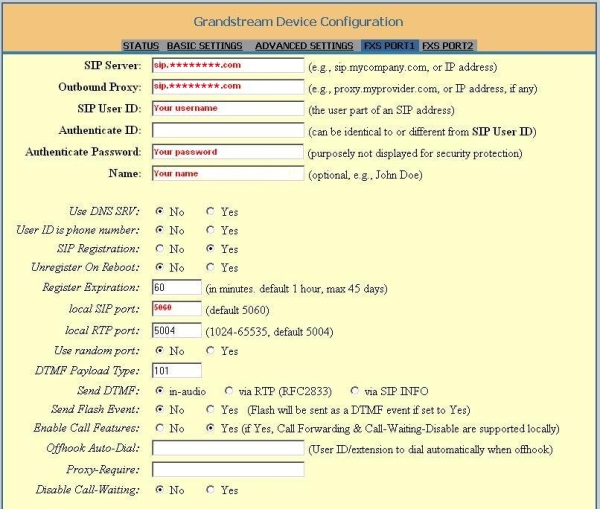

GRANDSTREAM HT386
|
(click here to expand) |
|
Fill in the following settings:
| |
|
SIP Server : fill in sip.Webcalldirect.com |
|
Outbound Proxy : this is sip.Webcalldirect.com |
|
SIP User ID : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Authenticate Password : your password, this is the password you used for the registration of your Webcalldirect-account |
|
Name : your name or telephonenumber, this name will be displayed in the phone screen of the person you are calling |
|
Local SIP port : fill in 5060 |
|
Don't change the other options |
|
|

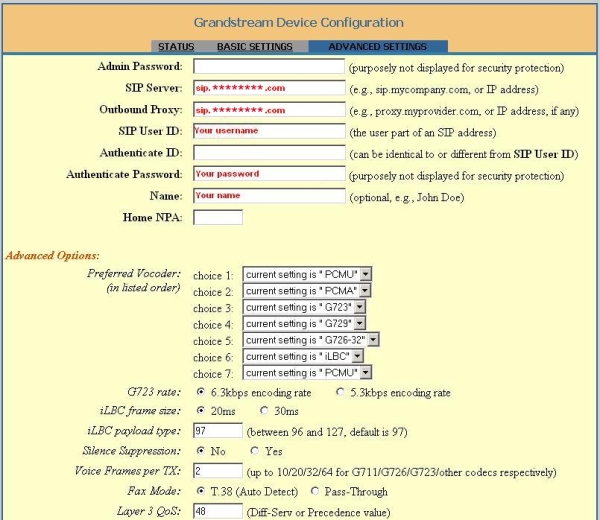

GRANDSTREAM HT486
|
(click here to expand) |
|
Fill in the following settings:
| |
|
SIP Server : fill in sip.Webcalldirect.com |
|
Outbound Proxy : this is sip.Webcalldirect.com |
|
SIP User ID : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Authenticate Password : fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Name : you can fill-in e.g. your name or telephonenumber, this name will be displayed in the phone screen of the person you are calling |
|
Don't change the Advanced Options |
|
|

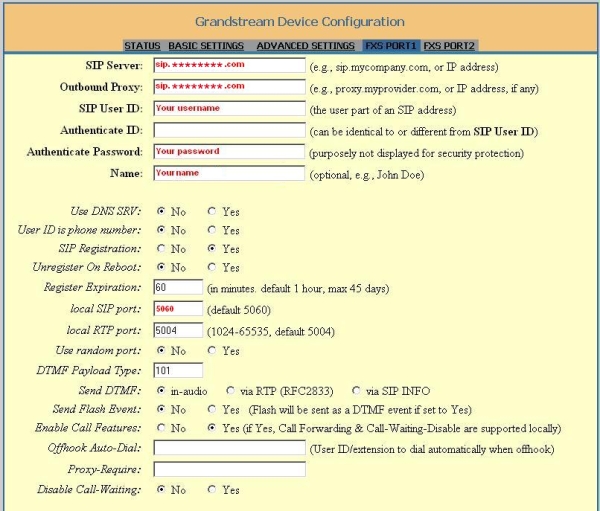

GRANDSTREAM HT496
|
(click here to expand) |
|
Fill in the following settings:
| |
|
SIP server : fill in sip.Webcalldirect.com |
|
Outbound Proxy : this is sip.Webcalldirect.com |
|
SIP User ID : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Authenticate Password : your password, this is the password you used for the registration of your Webcalldirect-account |
|
Name : your name or telephonenumber, this name will be displayed in the phone screen of the person you are calling |
|
Local SIP port : fill in 5060 |
|
Don't change the other options |
|
|

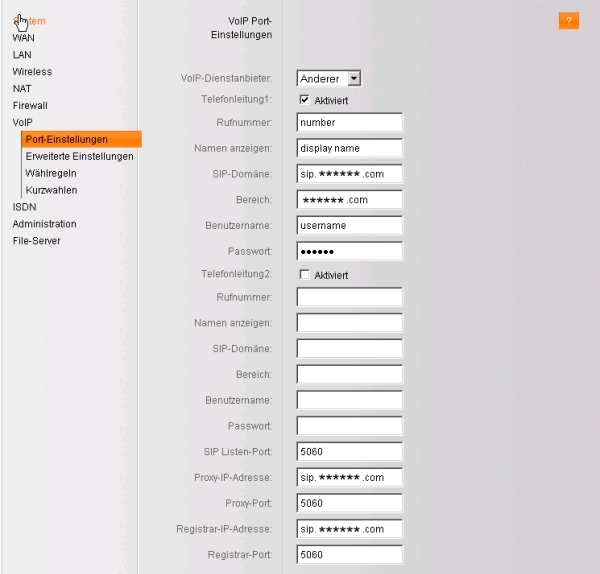

SIEMENS SX553
|
(click here to expand) |
|
Fill in the following settings:
| |
|
Rufnummer : your VOIP phone number (if available) |
|
Namen anzeigen : you can fill in your name |
|
SIP-Domäne : fill in sip.Webcalldirect.com |
|
Bereich : this is Webcalldirect.com |
|
Benutzername : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Passwort : fill in your password, this is the password you used for the registration of you Webcalldirect-account |
|
SIP Listen-Port : this is port 5060 |
|
Proxy-IP-Adresse : fill in sip.Webcalldirect.com |
|
Proxy-Port : this is port 5060 |
|
Registrar-IP-Adresse : sip.Webcalldirect.com |
|
Registrar-Port : this is port 5060 |
|
|

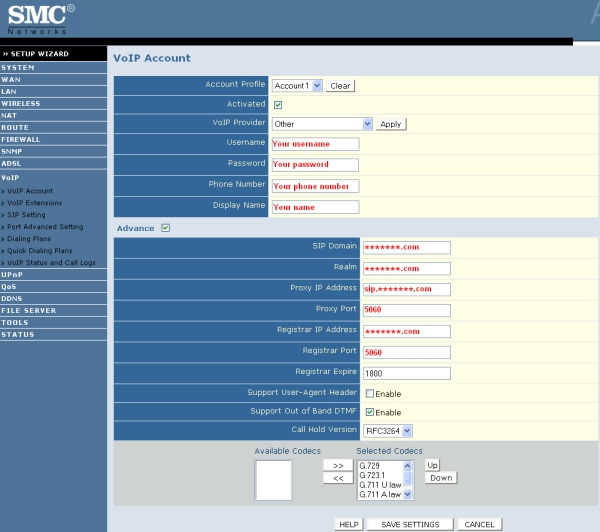

SMC 7908 VoWBRA
|
(click here to expand) |
|
Fill in the following settings:
| |
|
Username : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Password : fill in your password, this is the password you used for the registration of your Webcalldirect-account |
|
Phone Number : your VOIP phone number (if available) |
|
Display Name : you can fill in your name |
|
SIP Domain : this is Webcalldirect.com |
|
Realm : fill in Webcalldirect.com |
|
Proxy IP Address : this is sip.Webcalldirect.com |
|
Proxy Port : this is port 5060 |
|
Registrar IP Address : this is Webcalldirect.com |
|
Registrar Port : this is port 5060 |
|
|

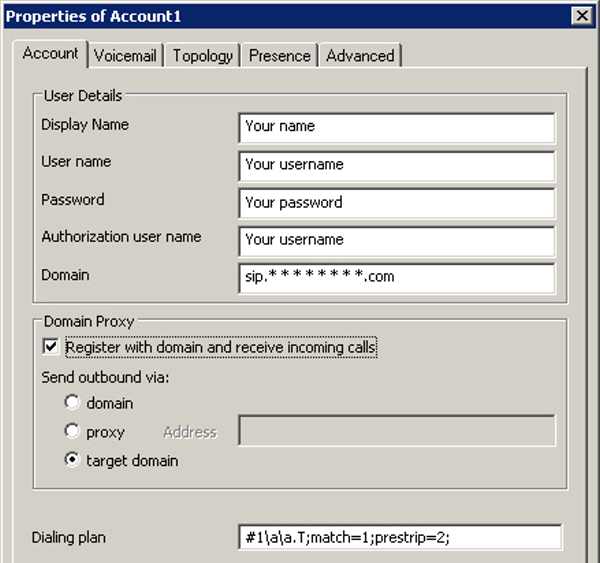

X-lite v3.0 Software
|
(click here to expand) |
|
Fill in the following settings:
| |
|
Display Name : fill in your your name, this name will be displayed in the phone screen of the person you are calling |
|
User name : fill in your username, this is the username you used for the registration of your Webcalldirect-account |
|
Password : fill in your your password, this is the password you used for the registration of your Webcalldirect-account |
|
Authorization user name : same as User name |
|
Domain : fill in sip.Webcalldirect.com |
|
If you have audio problems:
Use a STUN server (e.g. stun.webcalldirect.net) with port 3478 (if supported by your device)
Use the G.711 codec
For more specific technical information, please visit the FAQ.
|
| |
|
|
